The Lunar range
One anti-glare LED design, sized to your site
From a one-person portable stand to a towable tower. The same even, anti-glare daylight, rated 50,000 hours, in the format your site needs.
- Anti-glare LED
- 50,000-hour life
- Australian-made since 1994
The Lunar range
One anti-glare design, four formats
Same even, anti-glare daylight and the same 50,000-hour head across the range. Pick the format your site needs.
For tight & indoor jobs
1710W · Portable tripod
One-person stand. Carries in as two cases, plugs into mains, packs down small.
For yards & tight access
2550W · Self-powered trolley
Fits where a trailer will not. Carries its own diesel, or runs off mains indoors.
For big open sites
2550W · Towable tower
Tow it in, raise the 7.5 m mast and leave it. About six days on one tank.
For whole-site coverage
4800W · Flagship tower
The biggest head, 8 segments for finer aim. Lights 20,000 m² from one tower.
- Daylight colour
- 360° around, 180° top to bottom
- Fully dimmable
- Retrofits to your gear
- 50,000-hour life
Which one
It comes down to one question
All four make the same anti-glare daylight. The choice is really about whether a trailer can get onto your site.

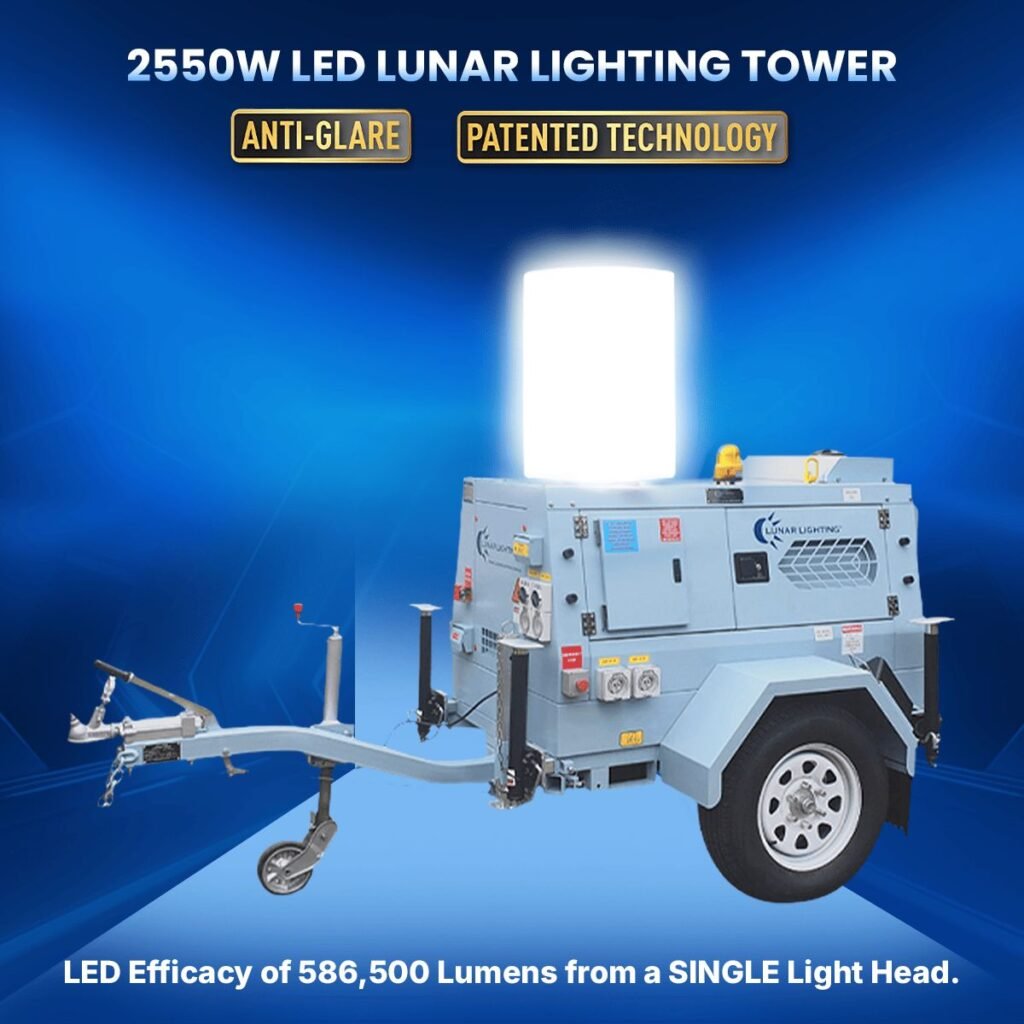

A trailer can get in
Both towers are the same trailer with a different head. A 7.5 m hydraulic mast, its own diesel, and a silenced cabinet at 58 dB or less at 7 m, so they can work near housing. The 2550 runs about six days on a tank. The 4800 lights twice the ground for half that time.
2550W Tower4800W Tower
It has to fit through a gate
The trolley pushes in on solid rubber tyres and brings its own diesel, or lifts in on four craneage points. The tripod carries in as two cases and runs off mains, with no engine, no fuel and nothing to service.
1710W Tripod2550W Trolley
| Specification | 1710WTripod | 2550WTrolley | 2550WTower | 4800WTower |
|---|---|---|---|---|
| Area lit | 5,027 m²at 4 m | 9,161 m²at 5 m | 9,161 m²at 5 m | 20,000 m²at 5 m |
| Raises to | Telescopic tripod | 5.5 m pneumatic | 7.5 m hydraulic | 7.5 m hydraulic |
| Runs on | Mains only | Own diesel, mains bypass | Own diesel, mains bypass | Own diesel, mains bypass |
| Run time | Mains, no refuelling | 26 hr on 20 L | ~153 hr on 130 L | ~76 hr on 130 L |
| Moves by | Carried, two cases | Pushed or craned | Towed | Towed |
| Weight | 14 kg head | ~275 kg | ~1,100 kg | ~1,100 kg |
| Noise | Silent | Not stated | 58 dB at 7 m | 58 dB at 7 m |
| LED efficacy | 393,300 lm | 586,500 lm | 586,500 lm | 1,104,000 lm |
| Light segments | 5 × 72° | 5 × 72° | 5 × 72° | 8 × 45° |
| Full specifications | Full specs | Full specs | Full specs | Full specs |
Common to all four: 5600K daylight, 230 lm/W, 50,000-hour life, rigid polymer diffuser, 360° around and 180° top to bottom. Run times marked with a tilde are calculated from tank capacity and fuel consumption.
Why anti-glare
See the work, not the glare
Conventional towers blind you with hot-spots. Lunar's patented head spreads even, anti-glare daylight across the whole area, so crews see fine detail through a long shift without the dazzle.
Even, not blinding
Diffused, uniform light over the whole site. No hot-spots, no eye strain over a long shift.
Aim it where the work is
5 to 8 independent segments direct the light a full 360° around, or focus it on one zone.
Fewer towers, less fuel
230 lm/W efficacy puts more light on site from each unit, so you run fewer of them.
Retrofits to what you own
The head mounts to conventional towers, poles, plant and machinery, not only Lunar gear.
A whole plant room lit from one head. Every label readable, no dazzle at the board.
Two formats, one range
Which Lunar is right for your site?
Same anti-glare LED daylight, two ways to deploy it. Here is the quick way to tell which one your site needs.
- Australian made since 1994
- NATO Stock Number issued
- Australian Defence & US Homeland Security
Still not sure? Tell us the site and we'll match the light to it.
Request a quoteWhat it costs to run
One tank. Days, not hours.
A light tower that needs refuelling every night costs you a call-out every night. These run for days on a tank, and the tripod runs on nothing at all.
The 2550W tower runs twice as long as the flagship
Same trailer, same 130 litre tank, same Kubota engine. The only difference is the head, and the lighter one burns half the fuel. If your site does not need a million lumens, the 2550 tower is not the cheaper choice. It is the one that stays out there longer.
The trolley's 26 hour run time is published on its specification sheet. The tower figures are calculated from tank capacity and quoted fuel consumption. Consumption is measured at a mechanical load of 2.75 kW for the trolley and 2550W tower, and 3.58 kW for the 4800W. Real run time varies with output setting, load and conditions.
The tripod, on the job
One person. Anywhere it's needed.
The 1710W tripod travels in a vehicle and sets up by hand, so it turns up wherever the work is, indoors or out.
- Workshops
- Heavy-vehicle servicing and truck bays.
- Plant rooms
- Switchboards and pumps, where every label has to be readable.
- Night fit-outs
- Interiors with no permanent lighting in yet.
- Hangars
- Aircraft maintenance after hours.
- Remote sites
- Field work and camps with no mains power.
Built to work anywhere
Will it survive your site?
Open-cut dust, salt spray, driving rain and alpine cold. Lunar is built to keep working where other gear quits.
Open-cut mine
Dust, vibration and round-the-clock shifts.
Port and coastal
Salt, wind and driving rain.
−40° to +85°C
Light head operating range. Cold-weather pack optional on diesel units.
50,000 hr
Rated LED life, flicker free
Aluminium
Pure heat sink, no moving cooling parts
Since 1994
Australian made, 32 years in the field

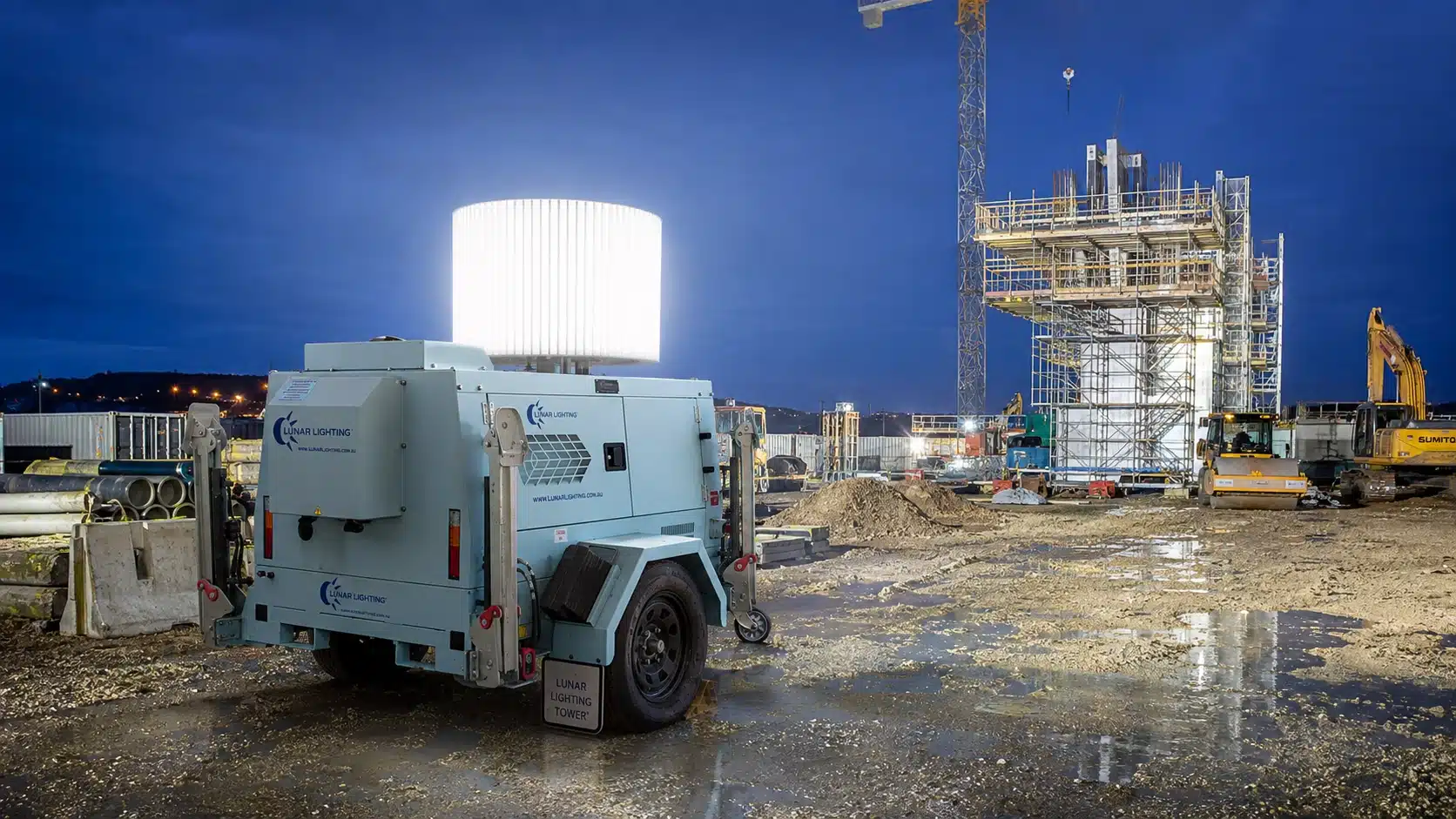

It goes up
Raise it high over the site
The head does not sit on the ground. It rides up a telescoping mast to light a whole site from above, so one unit covers what would take several floods at ground level.
9,161 m² lit from a 5 m mast, drone-measured
Up to 7.5 metres
Both towers raise to 7.5 m on a six-section hydraulic mast. The trolley reaches 5.5 m on a pneumatic one.
Four stabiliser legs
Heavy-duty legs level and steady the unit on rough ground. Hydraulic operation optional.
Even light from height
Lit from above, the anti-glare spread reaches the far corners with no hot-spots.

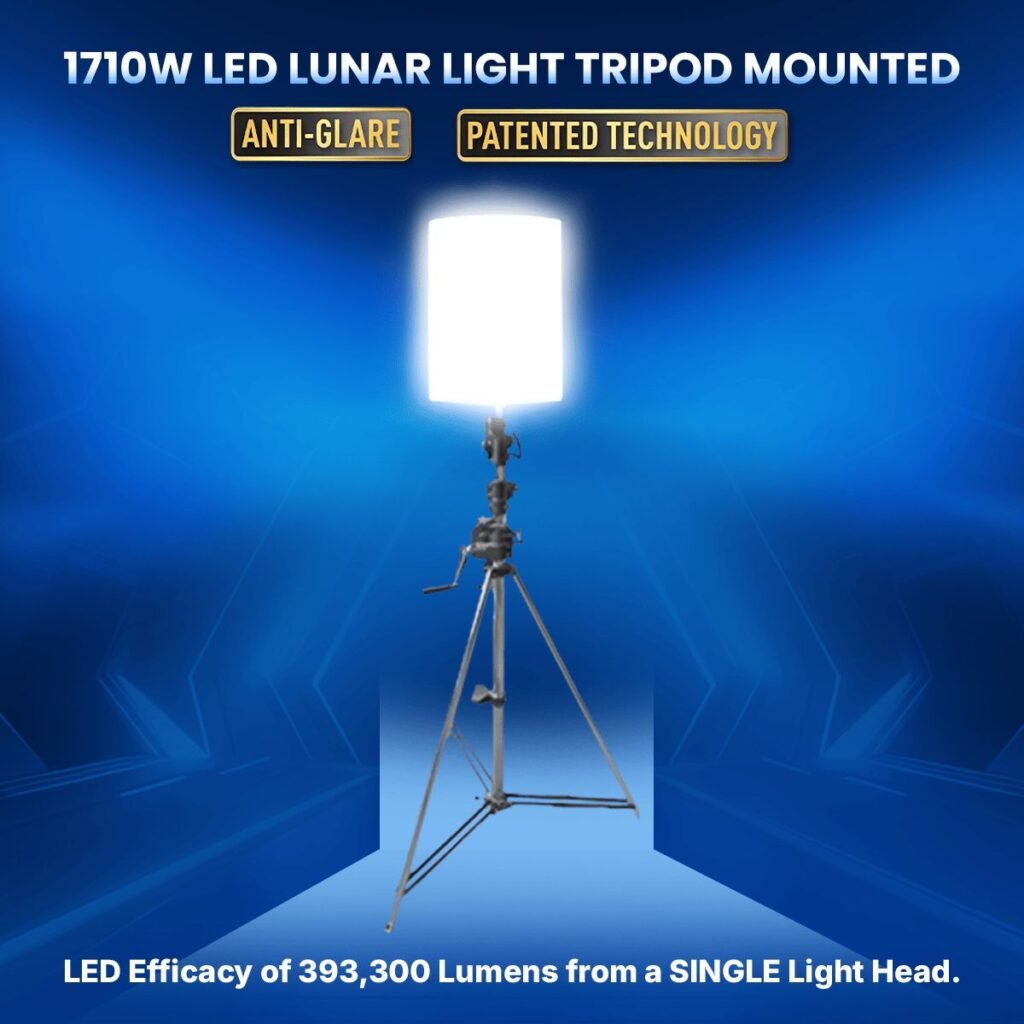

Tripod mounted · One-person portable
1710W LED Lunar Light®
393,300
lumens from a single light head
230 lm/W efficacy · 5600K daylight · 360° anti-glare
One person carries it in, stands it up and plugs it into mains. The same even, anti-glare daylight as the rest of the range, in the format that fits a tight space or an indoor job. No engine, no fuel, packs down into two transit cases.
Full specifications
Output
- Total LED efficacy
- 393,300 lm
- Efficacy rate
- 230 lm/W
- Flux after diffuser
- 266,266 lm
- Colour temperature
- 5600K daylight
- Area lit
- 5,027 m² at 4 m
Physical
- Head dimensions
- 57 cm H × 43 cm D
- Head weight
- 14 kg
- Stand
- Telescopic tripod
- Operating temp
- −40°C to 85°C
Power
- Adjustable wattages
- 342 / 684 / 1026 / 1368 / 1710W
- Input voltage
- 12 / 24 / 48VDC + 90–305VAC
- Amperage (1710W)
- 7.2 A @ 240V
- Supply
- Mains. No engine or fuel.
In the kit
- 1
- Light head
- 2
- Electronic control box
- 3
- Light-head transit road case
- 4
- Control-box transit road case
- 5
- Telescopic tripod
Build & features
- Light segments
- 5 independent × 72°
- LED lifespan
- 50,000 hr, flicker-free
- Construction
- Rigid polymer diffuser, pure aluminium heat sink
Anti-glare properties depend on dimmer settings. Retrofittable to conventional towers, poles, plant and machinery. Features and figures are a guide and may change without notice.
Trolley mounted · Self-powered & mobile
2550W LED Lunar Light®
586,500
lumens from a single light head
230 lm/W efficacy · 5600K daylight · 360° anti-glare
The same 586,500-lumen anti-glare head on a self-powered wheeled trolley. Its own diesel engine and a 5.5 metre pneumatic mast, so it runs anywhere you can push it, with no vehicle and no site power. Twenty-six hours on a tank, or bypass the engine and run off mains indoors.
Full specifications
Output
- Total LED efficacy
- 586,500 lm
- Efficacy rate
- 230 lm/W
- Flux after diffuser
- 335,836 lm
- Colour temperature
- 5600K daylight
- Area lit
- 9,161 m² at 5 m
Mast & setup
- Mast height
- 5.5 m
- Mast operation
- Electronically controlled pneumatic
- Mast cable
- Spiral
- Handling
- 4 lifting points, 4 tie-down lugs
Physical
- Head dimensions
- 57 cm H × 43 cm D
- Head weight
- 14 kg
- Dimensions
- 134 cm L × 89 cm W × 205 cm H
- Unit weight
- ~275 kg
- Operating temp
- −40°C to 85°C
Power
- Adjustable wattages
- 510 / 1020 / 1530 / 2040 / 2550W
- Input voltage
- 12 / 24 / 48VDC + 90–305VAC
- Amperage (2550W)
- 10 A @ 240V
- Outlet
- 15 A, 240V
- Mains bypass
- Runs off mains without the engine, for indoor use
Engine & running
- Engine
- Yanmar, 4.4 kW
- Alternator
- Mecc Alte, 5.5 kVA AVR
- Fuel tank
- 20 L metal
- Fuel consumption
- 0.79 L/hr at 2.75 kW
- Run time
- 26 hr on a full tank
- Auto start
- Auto start and shutdown
Build & features
- Light segments
- 5 independent × 72°
- LED lifespan
- 50,000 hr, flicker-free
- Construction
- Rigid polymer diffuser, pure aluminium heat sink
- Tyres
- Solid rubber, puncture proof
- Protection
- Emergency stop, low oil pressure, high and low voltage
- Electrical
- Battery isolator, glow plugs
Anti-glare properties depend on dimmer settings. Retrofittable to conventional towers, poles, plant and machinery. Features and figures are a guide and may change without notice.
